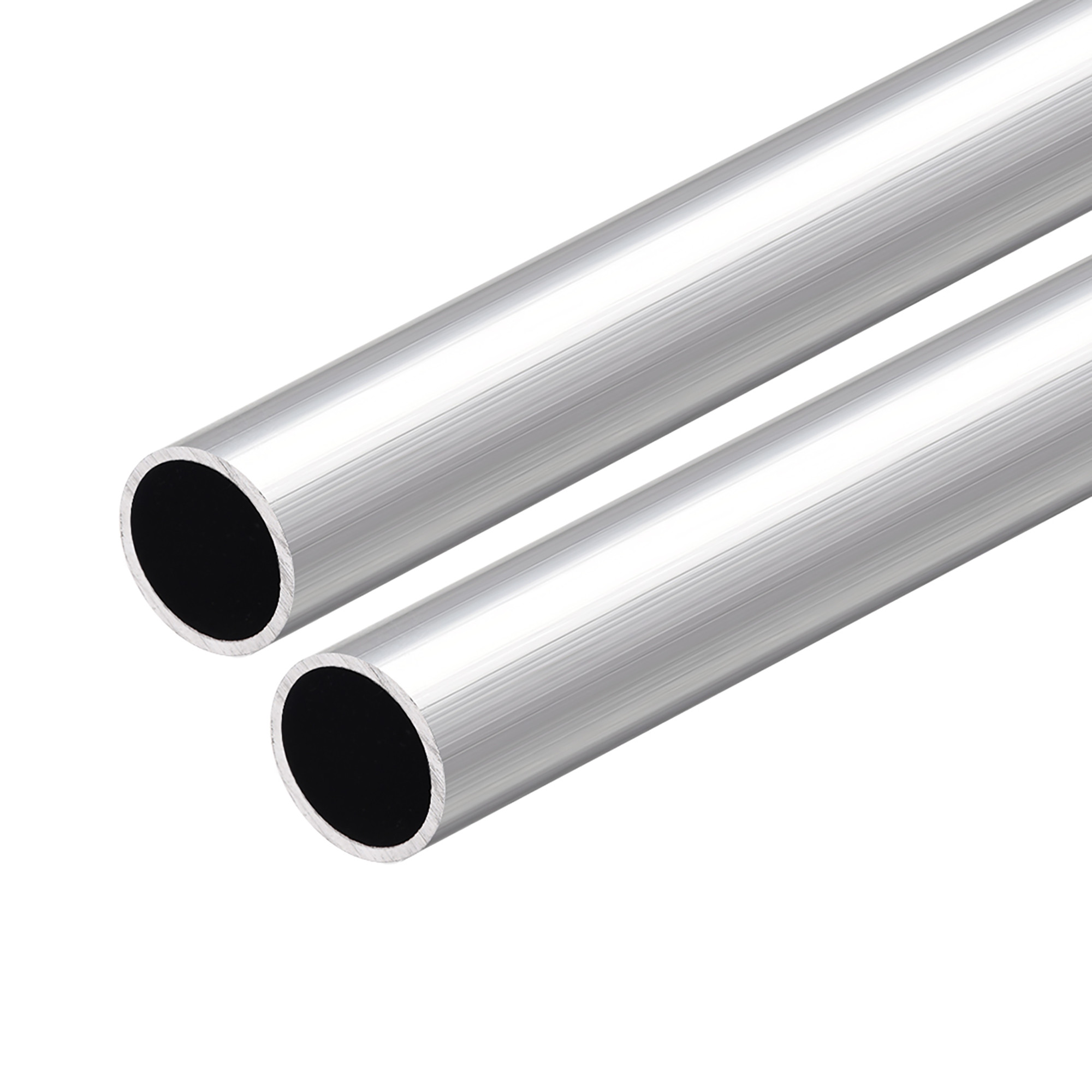

Extruded 6061 Aluminium Pipe Tube Profiles For Chair Mill Finished
Silver
Surface treatment:
1) Mill Finished
2) Anodized: Silver, champagne, light bronze, dark bronze, black,
light titanium, dark titanium. Usually the thickness of the film is
10 um.
3) Electrophoretic coated: Silver, champagne, bronze, black, light
bronze, dark bronze.
4) Powder spray coated Normal color, special color. Thickness: 60
to 80 um.
5) Fluorocarbon powder spray coated /PVDF Paint: Normal color,
special color.
6) Brushed
7) Steel polished
8) Wood grain coated /Wooden transfer: Imported paper, domestic
paper.
Mechanical Properties of Aluminum Sections under Room Temperature
Alloy |
State | Tensile strength test | Hardness test |
| Tensile strength Rm M pa | Non-proportional Stretching Stress | Stretching rate | Pattern thickness | HV | HW |
| Rp0.2Mpa | (A50mm%) | mm | HV | HW |
|
| 6063 | T4 | 130 | 75 | 14 | - |
| T5 | 160 | 110 | 8 | 0.8 | 58 | 8 |
| T6 | 205 | 180 | 8 | - |
6061 | T4 | 184 | 110 | 16 | - |
| T6 | 265 | 245 | 8 | - |
6082
(6351) | T4 | 205 | 110 | 12 | - |
| T6 | 290 | 250 | 6 | - |
Packing : Protect film for each profile, shrink film/Kraft paper
exterior for each bundle or pack as customer request.
|
FOB port: Foshan, Shenzhen, Guangzhou
|
Delivery time: 15-20 days after receiving the deposite.
|
Payment term: 30% deposite and 70% balance after the delivery
|
Brand name: Kaiyamei Aluminum
|
Material: 6063 Alloy
|
Temper: T5
|
Finish: Mill Finished, Anodize, Electrophoresis, Powder Coating
,Polish, Wood grain, Sand Blasting
|
Color: Clear Satin, Bronze, Black, Golden, Silver, Steel Gray......
|
Thickness: Customize
|
MOQ: 500KG. Usually 12 tons for a 20 feet container; 24 tons for a
40 feet container.
|
Length: 5.8-5.98m, or as customer's request
|
Sample delivery: Two weeks (one week for mould +one week making
sample)
|
Sample design: It is better we can get your drawing or sample, we
mainly make according to your design, and we can keep confidential
for your design.
|
Maximum extruder machine: 8000 tons; Minimum extruder machine: 500
ton
|
If the profiles are customized, we will make the sample first,
after we get the confirmation from you, we will start production.
|
General Chemical Composition of Alloy
| Alloy | 6063(%) | 6061(%) | 6082(%) |
| Silicon Si | 0.20~0.60 | 0.40~0.80 | 0.7~1.2 |
| Iron Fe | 0.35 | 0.70 | 0.5 |
| Copper Cu | 0.10 | 0.15~0.40 | 0.1 |
| Manganese Mn | 0.10 | 0.15 | 0.4~0.8 |
| Manganese Mg | 0.45~0.90 | 0.18~1.2 | 0.6~0.8 |
| Chromium Cr | 0.10 | 0.04~0.35 | 0.25 |
| Zine Zn | 0.10 | 0.25 | 0.2 |
| Titanium Ti | 0.10 | 0.15 | 0.1 |
| Others(each) | 0.05 | 0.05 | 0.05 |
| Others | 0.15 | 0.15 | 0.15 |
| Aluminum | Remainder | Remainder | Remainder |
Our advantage:
KAIYA Aluminum is specialized in aluminum profile, we are the " Top 20 Enterprise of Construction Aluminum Industry" in Foshan Guangdong China and
products with ISO9000 ISO9001 ISO1400, CE standard.
1.Advanced Equipments
Our production equipments are imported from Switzerland, Germany,
Japan. Our products were exported to many countries in North
America, Africa, Europe and South-east Asian like America, Canada,
Australia, Germany, France, Philippine, etc
2.Professional Work Team
We have professional work team who can making nice quality in short
time. More than 50 modern management administrators, 28 senior technical
engineers, over 800 production workers.
3.Large-scale Production Base
Our production area covers over 80000 square meters to meet large order quantity and fast delivery all the time.
Our Package
1, Pearl cotton film+ shrink film
2, pearl cotton film + plastic film
3, pearl cottom film/shrink film +kraft paper
4, wood pallet
5, Any customized package is available.
We are welcome your inquiry, our team on line 24 hours!
Any inquiry or question welcome dirctly contact or via mail: yezhi@kaiya-aluminum.com
