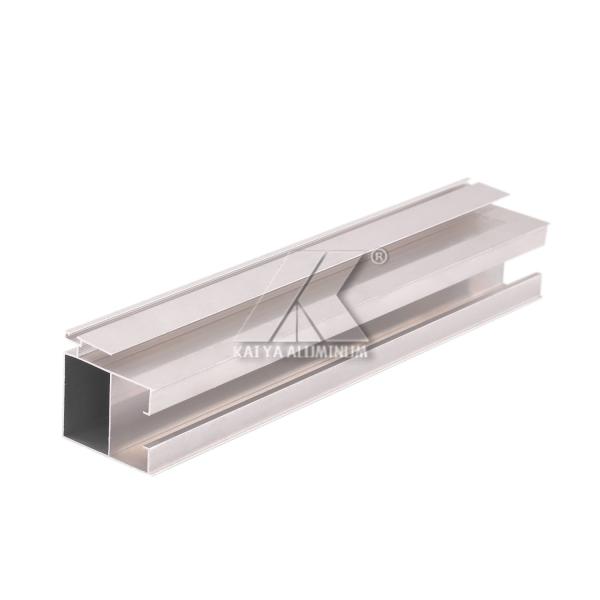

Casement Doors Window Aluminum Profiles For Fixed Glass Panelling Mill Finished

Ask Lasest Price
Brand Name :	KAIYAMEI
Model Number :	WD10113
Certification :	CE ISO9001, SGS, CTI, ROHS
Price :	USD1.6-3.3/Kilogram, negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	8000 TONS/MONTH
Delivery Time :	15-30days

Add to Cart

Product Details
Company Profile

Casement Doors Window Aluminum Profiles For Fixed Glass Panelling Mill Finished

Casement Doors Window Aluminum Profiles For Fixed Glass Panelling Mill Finished

Coloring Processing:

1: Process parameters: SnSO4 5-6g/l; NiSO4 16-18 g/l; 9-12 g/l 17-20 stain free acid; g/l; pH =0.8-1.2, bath temperature of 19-21 DEG C, coloring voltage should be lower than the oxidation voltage 14-16V; usually add the following ratio: SnSO4:NiSO4=1:1; color additives: SnSO4=1:1

2: Coloring products only with a single row of double row rolling way, the corresponding width of the spacing between two adjacent products or products, generally with the finger test more than two finger width, tie line must be tight, solid bar can only use the new tie line;

Class	Min-av erg film thickness	Min-part film thickness
AA10	10	8
AA15	15	12
AA20	20	16
AA25	25	20

General Chemical Composition of Alloy

Alloy	6063(%)	6061(%)	6082(%)
Silicon Si	0.20~0.60	0.40~0.80	0.7~1.2
Iron Fe	0.35	0.70	0.5
Copper Cu	0.10	0.15~0.40	0.1
Manganese Mn	0.10	0.15	0.4~0.8
Manganese Mg	0.45~0.90	0.18~1.2	0.6~0.8
Chromium Cr	0.10	0.04~0.35	0.25
Zine Zn	0.10	0.25	0.2
Titanium Ti	0.10	0.15	0.1
Others(each)	0.05	0.05	0.05
Others	0.15	0.15	0.15
Aluminum	Remainder	Remainder	Remainder

Mechanical Properties of Sections under Room Temperature

Alloy	State	Tensile strength test					Hardness test
		Tensile strength Rm M pa	Non-proportional Stretching Stress		Stretching rate		Pattern thickness		HV		HW
			Rp0.2Mpa		(A50mm%)		mm		HV		HW

6063	T4	130		75		14	-
	T5	160		110		8	0.8	58		8
	T6	205		180		8	-
6061	T4	184		110		16	-
	T6	265		245		8	-
6082 (6351)	T4	205		110		12	-
	T6	290		250		6	-

FAQ

Q: How to ensure the quality of your products?
A: ISO9001,ISO1400,CE, CQM.client reqirements, product standards,strict inspection to control raw material,production process and final products.

Q: How can we get your price ?
A: We need below information to quote for you:
1. Product Name;2. Standard;3. Material Grade (Chemical Composition);4. Dimension;5. Quantity;6. The Drawing for Special Parts.

Q: What’s the thickness for anodizing? Can you do 15um?

A: Our normal thickness is about 10 um. Yes, we can do 15um and above.

Q: What color you can do for powder coating? The thickness for powder coat?

A: We can do any color for powder coat as long as you can provide the color sample. Our normally powder coating thickness is 60-80um.

Q: What color you can do for wood grain?

A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western Wood, Snow Gum, etc. If you need any other colors, we can do according to the color samples you provide.

Q: What’s the delivery time for samples and mass production?

A: (1). 2-3 weeks to open the new mold and make samples.

(2). 3-4 weeks after receipt of deposit and confirmation of the order.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Casement Doors Window Aluminum Profiles For Fixed Glass Panelling Mill Finished

About us :

Foshan Kaiya Aluminum Co., Ltd is a comprehensive and professional enterprise integrating research, design production and sales of aluminium extrusion profiles for construction and industrial applications. There are currently 24 aluminum extrusion process lines at 500MT TO 2500MT, 5 process lines for anodizing, 3 process lines for powder coating, 2 process line for painting, 2 process line of polishing and brushing. We still have 2 packing line. Our annual production capacity has reached 80,000 tons which is at the forefront of the aluminium industry in China.

Casement Doors Window Aluminum Profiles For Fixed Glass Panelling Mill Finished

Our advantage:

KAIYA Aluminum is specialized in aluminum profile, we are the " Top 20 Enterprise of Construction Aluminum Industry" in Foshan Guangdong China and products with ISO9000 ISO9001 ISO1400, CE standard.

1.Advanced Equipments

Our production equipments are imported from Switzerland, Germany, Japan. Our products were exported to many countries in North America, Africa, Europe and South-east Asian like America, Canada, Australia, Germany, France, Philippine, etc
2.Professional Work Team
We have professional work team who can making nice quality in short time. More than 50 modern management administrators, 28 senior technical engineers, over 800 production workers.
3.Large-scale Production Base
Our production area covers over 80000 square meters to meet large order quantity and fast delivery all the time.
