Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade

    Buy cheap Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade from wholesalers

    Buy cheap Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade from wholesalers
    • Buy cheap Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade from wholesalers
    • Buy cheap Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade from wholesalers
    • Buy cheap Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade from wholesalers
    • Buy cheap Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade from wholesalers

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade

    Ask Lasest Price
    Brand Name : KAIYAMEI
    Model Number : KA-AH756
    Certification : ISO9000, ISO9001,ISO14000,CQC,RoHS
    Price : USD1.72-3.98/Kilogram, negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000 TONS YEAR
    Delivery Time : 15-45 Days
    • Product Details
    • Company Profile

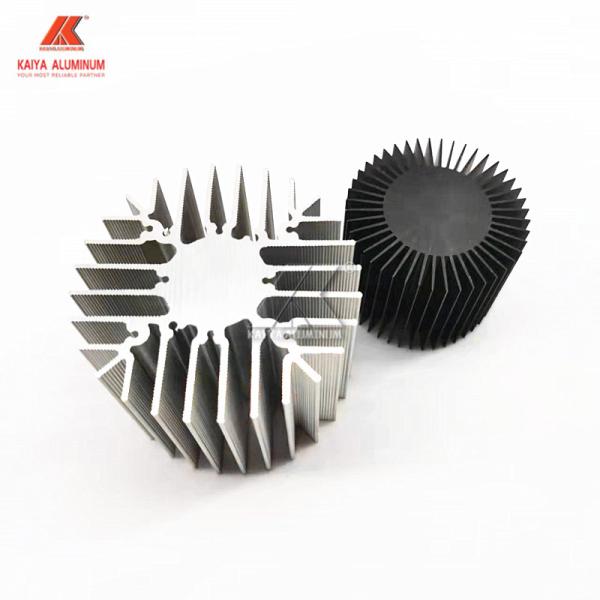

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade Heatsink


    About this item:


    1. Reduce the risk of hardware failure due to overheating.

    2. Widely used for computer, Power Transistor, FET, IC, Power Amplifier, Voltage Regulator, MOSFET, SCR etc.

    3. Maximize surface area Designed in contact with the cooling air. The 27pcs fins increase the area of the board and thus provide for greater heat transfer

    4. For need other sizes or oxidation of this model, contact the seller of this product model as soon as possible.


    Product Description
    Product Name:Round heatsink profile
    Material:Standard 6063 t5 al alloy
    Thickness:1.3-10mm
    Colour:Silver, black, gold, brown, brown
    Shape:Round cylinder
    Surface Treatment:Fluorocarbon, anodizing, mill finished
    Deep processing:Cutting,punching,drilling,tapping,milling,bending,welding,cnc machining, etc.
    Manufacture
    technological process:
    Aluminium ingot →Melting and casting→Homogenizing →Extrusion→Aging→Powder coating→Pouring rubber for heat insulation→Acceptance test→Packing→Warehouse→Delivery
    Certification:ISO 9000;ISO 9001;ISO 14000;CQC;RoHS;CE
    Markets we sold:Australia, Germany, North America, Africa, European countries and other areas.

    Aluminum Alloy Composition

    Alloy Grade6063(%)6061(%)
    Silicon Si0.20~0.600.40~0.80
    Iron Fe0.350.70
    Copper Cu0.100.15~0.40
    Manganese Mn0.100.15
    Manganese Mg0.45~0.900.18~1.2
    Chromium Cr0.100.04~0.35
    Zine Zn0.100.25
    Titanium Ti0.100.15
    Others(each)0.050.05
    Others0.150.15
    AluminumRemainderRemainder

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL GradeRound Anodized Heat Sink Aluminum Profiles 6063 T5 AL GradeRound Anodized Heat Sink Aluminum Profiles 6063 T5 AL GradeRound Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade

    Other Applications of Aluminum Profiles:

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade



    FAQ

    Q: How to ensure the quality of your products?
    A: ISO9001,ISO1400,CE, CQM.client reqirements, product standards,strict inspection to control raw material,production process and final products.


    Q: How can we get your price ?
    A: We need below information to quote for you:
    1. Product Name;2. Standard;3. Material Grade (Chemical Composition);4. Dimension;5. Quantity;6. The Drawing for Special Parts.


    Q: What’s the thickness for anodizing? Can you do 15um?

    A: Our normal thickness is about 10 um. Yes, we can do 15um and above.


    Q: What color you can do for powder coating? The thickness for powder coat?

    A: We can do any color for powder coat as long as you can provide the color sample. Our normally powder coating thickness is 60-80um.


    Q: What color you can do for wood grain?

    A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western Wood, Snow Gum, etc. If you need any other colors, we can do according to the color samples you provide.


    Q: What’s the delivery time for samples and mass production?

    A: (1). 2-3 weeks to open the new mold and make samples.

    (2). 3-4 weeks after receipt of deposit and confirmation of the order.


    Q: What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


    Q: How do you make our business long-term and good relationship?
    A: 1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade


    About us :


    Foshan Kaiya Aluminum Co., Ltd is a comprehensive and professional enterprise integrating research, design production and sales of aluminium extrusion profiles for construction and industrial applications. There are currently 24 aluminum extrusion process lines at 500MT TO 2500MT, 5 process lines for anodizing, 3 process lines for powder coating, 2 process line for painting, 2 process line of polishing and brushing. We still have 2 packing line. Our annual production capacity has reached 80,000 tons which is at the forefront of the aluminium industry in China.

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade

    Our advantage:

    KAIYA Aluminum is specialized in aluminum profile, we are the " Top 20 Enterprise of Construction Aluminum Industry" in Foshan Guangdong China and products with ISO9000 ISO9001 ISO1400, CE standard.
    1.Advanced Equipments
    Our production equipments are imported from Switzerland, Germany, Japan. Our products were exported to many countries in North America, Africa, Europe and South-east Asian like America, Canada, Australia, Germany, France, Philippine, etc
    2.Professional Work Team
    We have professional work team who can making nice quality in short time. More than 50 modern management administrators, 28 senior technical engineers, over 800 production workers.
    3.Large-scale Production Base
    Our production area covers over 80000 square meters to meet large order quantity and fast delivery all the time.

    Round Anodized Heat Sink Aluminum Profiles 6063 T5 AL GradeRound Anodized Heat Sink Aluminum Profiles 6063 T5 AL GradeRound Anodized Heat Sink Aluminum Profiles 6063 T5 AL Grade
