Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors

    Buy cheap Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors from wholesalers

    Buy cheap Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors from wholesalers
    • Buy cheap Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors from wholesalers
    • Buy cheap Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors from wholesalers
    • Buy cheap Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors from wholesalers
    • Buy cheap Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors from wholesalers

    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors

    Ask Lasest Price
    Brand Name : KAIYAMEI
    Model Number : KA-AC855
    Certification : ISO9000, ISO9001, ISO14000, CQC, RoHS, Testing Reports
    Price : USD1.68-3.98/Kilogram
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 9000 Ton/Month
    Delivery Time : 15-35 DAYS
    • Product Details
    • Company Profile

    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors

    Thermal Insulation Sliding Door Frame Aluminum Door Profile For Patio Glass Bi Folding Doors


    Details

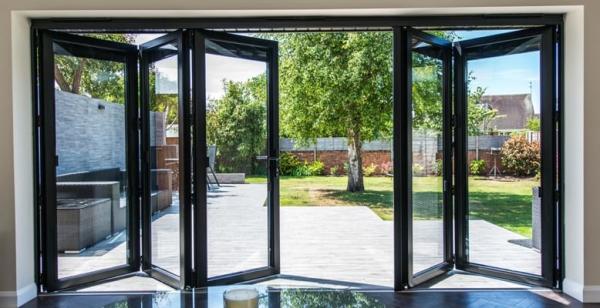

    Aluminium patio bifold door profile is perfect for anyone wanting to expand their patio space.

    • Any RAL color options
    • Internally glazed
    • Lightweight Aluminium
    • multi-point locking system for options

    Product Description
    Product Name:Thermal Insulation Patio Sliding Folding Door Frame Aluminum Profile
    Material:Thermal insulation aluminum alloy 6063 t5 6061 t6
    Thickness:2.5-4.5mm
    ColourMatt black/brown/silver, or as your requests
    Shape:Standard according to the wall and glass sizes
    Surface Treatment:Anodized, or fluorocarbon coating
    Deep processing:Cutting,punching,drilling,tapping,milling,bending,welding,cnc machining, etc.
    Manufacture
    technological process:
    Aluminium ingot →Melting and casting→Homogenizing →Extrusion→Aging→Powder coating→Pouring rubber for heat insulation→Acceptance test→Packing→Warehouse→Delivery.
    Certification:ISO 9000;ISO 9001;ISO 14000;CQC;RoHS;CE
    Markets we sold:Australia, Germany, North America, Africa, European countries and other areas.

    Aluminum Alloy Composition

    Alloy Standard6063(%)6061(%)
    Silicon Si0.20~0.600.40~0.80
    Iron Fe0.350.70
    Copper Cu0.100.15~0.40
    Manganese Mn0.100.15
    Manganese Mg0.45~0.900.18~1.2
    Chromium Cr0.100.04~0.35
    Zine Zn0.100.25
    Titanium Ti0.100.15
    Others(each)0.050.05
    Others0.150.15
    AluminumRemainderRemainder

    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding DoorsThermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding DoorsThermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors


    Applications of Aluminum Profiles:

    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors

    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors



    FAQ

    Q: How to ensure the quality of your products?
    A: ISO9001,ISO1400,CE, CQM.client reqirements, product standards,strict inspection to control raw material,production process and final products.


    Q: How can we get your price ?
    A: We need below information to quote for you:
    1. Product Name;2. Standard;3. Material Grade (Chemical Composition);4. Dimension;5. Quantity;6. The Drawing for Special Parts.


    Q: What’s the thickness for anodizing? Can you do 15um?

    A: Our normal thickness is about 10 um. Yes, we can do 15um and above.


    Q: What color you can do for powder coating? The thickness for powder coat?

    A: We can do any color for powder coat as long as you can provide the color sample. Our normally powder coating thickness is 60-80um.


    Q: What color you can do for wood grain?

    A: Our most popular colors are Western Red Cedar, Australia Cedar, Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western Wood, Snow Gum, etc. If you need any other colors, we can do according to the color samples you provide.


    Q: What’s the delivery time for samples and mass production?

    A: (1). 2-3 weeks to open the new mold and make samples.

    (2). 3-4 weeks after receipt of deposit and confirmation of the order.


    Q: What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


    Q: How do you make our business long-term and good relationship?
    A: 1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors


    About us :


    Foshan Kaiya Aluminum Co., Ltd is a comprehensive and professional enterprise integrating research, design production and sales of aluminium extrusion profiles for construction and industrial applications. There are currently 24 aluminum extrusion process lines at 500MT TO 2500MT, 5 process lines for anodizing, 3 process lines for powder coating, 2 process line for painting, 2 process line of polishing and brushing. We still have 2 packing line. Our annual production capacity has reached 80,000 tons which is at the forefront of the aluminium industry in China.

    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors

    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors

    Our advantage:

    KAIYA Aluminum is specialized in aluminum profile, we are the " Top 20 Enterprise of Construction Aluminum Industry" in Foshan Guangdong China and products with ISO9000 ISO9001 ISO1400, CE standard.
    1.Advanced Equipments
    Our production equipments are imported from Switzerland, Germany, Japan. Our products were exported to many countries in North America, Africa, Europe and South-east Asian like America, Canada, Australia, Germany, France, Philippine, etc
    2.Professional Work Team
    We have professional work team who can making nice quality in short time. More than 50 modern management administrators, 28 senior technical engineers, over 800 production workers.
    3.Large-scale Production Base
    Our production area covers over 80000 square meters to meet large order quantity and fast delivery all the time.

    Thermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding DoorsThermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding DoorsThermal Insulation Sliding Frame Aluminum Door Profile 2.5mm For Patio Glass Bi Folding Doors
